Installation
Install the required dependencies first, then copy the component code below. GradFlow requires the OGL library.
Install Dependencies
npm install ogl clsx tailwind-mergeComponent
'use client'
import { useEffect, useRef, useMemo } from 'react'
import { Mesh, Program, Renderer, Transform, Plane } from 'ogl'
import { cn } from '@/lib/utils'
export type RGB = {
r: number
g: number
b: number
}
export type GradientConfig = {
color1: RGB
color2: RGB
color3: RGB
speed: number
scale: number
type: GradientType
noise: number
}
export type GradientType =
| 'linear'
| 'animated'
| 'conic'
| 'wave'
| 'silk'
| 'smoke'
| 'stripe'
export type GradFlowProps = {
config?: Partial<GradientConfig>
className?: string
}
export const vertexShader = `
attribute vec2 position;
varying vec2 vUv;
void main() {
vUv = position * 0.5 + 0.5;
gl_Position = vec4(position, 0.0, 1.0);
}
`
export const fragmentShader = `
#ifdef GL_FRAGMENT_PRECISION_HIGH
precision highp float;
#else
precision mediump float;
#endif
uniform float u_time;
uniform vec3 u_color1;
uniform vec3 u_color2;
uniform vec3 u_color3;
uniform float u_speed;
uniform float u_scale;
uniform int u_type;
uniform float u_noise;
uniform vec2 u_resolution;
varying vec2 vUv;
#define PI 3.14159265359
// @Utility
float noise(vec2 st) {
return fract(sin(dot(st, vec2(12.9898, 78.233))) * 43758.5453);
}
// @Gradient Types
vec3 linearGradient(vec2 uv, float time) {
float t = (uv.y * u_scale) + sin(uv.x * PI + time) * 0.1;
t = clamp(t, 0.0, 1.0);
return t < 0.5
? mix(u_color1, u_color2, t * 2.0)
: mix(u_color2, u_color3, (t - 0.5) * 2.0);
}
vec3 conicGradient(vec2 uv, float time) {
vec2 center = vec2(0.5);
vec2 pos = uv - center;
float angle = atan(pos.y, pos.x);
float normalizedAngle = (angle + PI) / (2.0 * PI);
float t = fract(normalizedAngle * u_scale + time * 0.3);
float smoothT = t;
vec3 color;
if (smoothT < 0.33) {
color = mix(u_color1, u_color2, smoothstep(0.0, 0.33, smoothT));
} else if (smoothT < 0.66) {
color = mix(u_color2, u_color3, smoothstep(0.33, 0.66, smoothT));
} else {
color = mix(u_color3, u_color1, smoothstep(0.66, 1.0, smoothT));
}
float dist = length(pos);
color += sin(dist * 8.0 + time * 1.5) * 0.03;
return color;
}
#define S(a,b,t) smoothstep(a,b,t)
mat2 Rot(float a) {
float s = sin(a);
float c = cos(a);
return mat2(c, -s, s, c);
}
vec2 hash(vec2 p) {
p = vec2(dot(p, vec2(2127.1, 81.17)), dot(p, vec2(1269.5, 283.37)));
return fract(sin(p) * 43758.5453);
}
float advancedNoise(in vec2 p) {
vec2 i = floor(p);
vec2 f = fract(p);
vec2 u = f * f * (3.0 - 2.0 * f);
float n = mix(mix(dot(-1.0 + 2.0 * hash(i + vec2(0.0, 0.0)), f - vec2(0.0, 0.0)),
dot(-1.0 + 2.0 * hash(i + vec2(1.0, 0.0)), f - vec2(1.0, 0.0)), u.x),
mix(dot(-1.0 + 2.0 * hash(i + vec2(0.0, 1.0)), f - vec2(0.0, 1.0)),
dot(-1.0 + 2.0 * hash(i + vec2(1.0, 1.0)), f - vec2(1.0, 1.0)), u.x), u.y);
return 0.5 + 0.5 * n;
}
vec3 animatedGradient(vec2 uv, float time) {
float ratio = u_resolution.x / u_resolution.y;
vec2 tuv = uv;
tuv -= 0.5;
float degree = advancedNoise(vec2(time * 0.1 * u_speed, tuv.x * tuv.y));
tuv.y *= 1.0 / ratio;
tuv *= Rot(radians((degree - 0.5) * 720.0 * u_scale + 180.0));
tuv.y *= ratio;
float frequency = 5.0 * u_scale;
float amplitude = 30.0;
float speed = time * 2.0 * u_speed;
tuv.x += sin(tuv.y * frequency + speed) / amplitude;
tuv.y += sin(tuv.x * frequency * 1.5 + speed) / (amplitude * 0.5);
vec3 layer1 = mix(u_color1, u_color2, S(-0.3, 0.2, (tuv * Rot(radians(-5.0))).x));
vec3 layer2 = mix(u_color2, u_color3, S(-0.3, 0.2, (tuv * Rot(radians(-5.0))).x));
vec3 finalComp = mix(layer1, layer2, S(0.05, -0.2, tuv.y));
return finalComp;
}
vec3 waveGradient(vec2 uv, float time) {
float y = uv.y;
float wave1 = sin(uv.x * PI * u_scale * 0.8 + time * u_speed * 0.5) * 0.1;
float wave2 = sin(uv.x * PI * u_scale * 0.5 + time * u_speed * 0.3) * 0.15;
float wave3 = sin(uv.x * PI * u_scale * 1.2 + time * u_speed * 0.8) * 0.2;
float flowingY = y + wave1 + wave2 + wave3;
float pattern = smoothstep(0.0, 1.0, clamp(flowingY, 0.0, 1.0));
vec3 color;
if (pattern < 0.33) {
float t = smoothstep(0.0, 0.33, pattern);
color = mix(u_color1, u_color2, t);
} else if (pattern < 0.66) {
float t = smoothstep(0.33, 0.66, pattern);
color = mix(u_color2, u_color3, t);
} else {
float t = smoothstep(0.66, 1.0, pattern);
color = mix(u_color3, u_color1, t);
}
float variation = sin(uv.x * PI * 2.0 + time * u_speed) *
cos(uv.y * PI * 1.5 + time * u_speed * 0.7) * 0.02;
color += variation;
return clamp(color, 0.0, 1.0);
}
vec3 silkGradient(vec2 uv, float time) {
vec2 fragCoord = uv * u_resolution;
vec2 invResolution = 1.0 / u_resolution.xy;
vec2 centeredUv = (fragCoord * 2.0 - u_resolution.xy) * invResolution;
centeredUv *= u_scale;
float dampening = 1.0 / (1.0 + u_scale * 0.1);
float d = -time * u_speed * 0.5;
float a = 0.0;
for (float i = 0.0; i < 8.0; ++i) {
a += cos(i - d - a * centeredUv.x) * dampening;
d += sin(centeredUv.y * i + a) * dampening;
}
d += time * u_speed * 0.5;
vec3 patterns = vec3(
cos(centeredUv.x * d + a) * 0.5 + 0.5,
cos(centeredUv.y * a + d) * 0.5 + 0.5,
cos((centeredUv.x + centeredUv.y) * (d + a) * 0.5) * 0.5 + 0.5
);
vec3 color1Mix = mix(u_color1, u_color2, patterns.x);
vec3 color2Mix = mix(u_color2, u_color3, patterns.y);
vec3 color3Mix = mix(u_color3, u_color1, patterns.z);
vec3 finalColor = mix(color1Mix, color2Mix, patterns.z);
finalColor = mix(finalColor, color3Mix, patterns.x * 0.5);
vec3 originalPattern = vec3(cos(centeredUv * vec2(d, a)) * 0.6 + 0.4, cos(a + d) * 0.5 + 0.5);
originalPattern = cos(originalPattern * cos(vec3(d, a, 2.5)) * 0.5 + 0.5);
return mix(finalColor, originalPattern * finalColor, 0.3);
}
vec3 smokeGradient(vec2 uv, float time) {
float mr = min(u_resolution.x, u_resolution.y);
vec2 fragCoord = uv * u_resolution;
vec2 p = (2.0 * fragCoord.xy - u_resolution.xy) / mr;
p *= u_scale;
float iTime = time * u_speed;
for(int i = 1; i < 10; i++) {
vec2 newp = p;
float fi = float(i);
newp.x += 0.6 / fi * sin(fi * p.y + iTime + 0.3 * fi) + 1.0;
newp.y += 0.6 / fi * sin(fi * p.x + iTime + 0.3 * (fi + 10.0)) - 1.4;
p = newp;
}
float redPattern = 1.0;
float greenPattern = 1.0 - sin(p.y);
float bluePattern = sin(p.x + p.y);
greenPattern = clamp(greenPattern, 0.0, 1.0);
bluePattern = bluePattern * 0.5 + 0.5;
vec3 color;
vec3 color12 = mix(u_color1, u_color2, greenPattern);
color = mix(color12, u_color3, bluePattern);
return clamp(color, 0.0, 1.0);
}
vec3 stripeGradient(vec2 uv, float time) {
vec2 p = ((uv * u_resolution * 2.0 - u_resolution.xy) / (u_resolution.x + u_resolution.y) * 2.0) * u_scale;
float t = time * 0.7, a = 4.0 * p.y - sin(-p.x * 3.0 + p.y - t);
a = smoothstep(cos(a) * 0.7, sin(a) * 0.7 + 1.0, cos(a - 4.0 * p.y) - sin(a + 3.0 * p.x));
vec2 warped = (cos(a) * p + sin(a) * vec2(-p.y, p.x)) * 0.5 + 0.5;
vec3 color = mix(u_color1, u_color2, warped.x);
color = mix(color, u_color3, warped.y);
color *= color + 0.6 * sqrt(color);
return clamp(color, 0.0, 1.0);
}
// @Main
void main() {
vec2 uv = vUv;
float time = u_time * u_speed;
vec3 color;
if (u_type == 0) {
color = linearGradient(uv, time);
} else if (u_type == 1) {
color = conicGradient(uv, time);
} else if (u_type == 2) {
color = animatedGradient(uv, time);
} else if (u_type == 3) {
color = waveGradient(uv, time);
} else if (u_type == 4) {
color = silkGradient(uv, time);
} else if (u_type == 5) {
color = smokeGradient(uv, time);
} else if (u_type == 6) {
color = stripeGradient(uv, time);
} else {
color = animatedGradient(uv, time);
}
if (u_noise > 0.001) {
float grain = noise(uv * 200.0 + time * 0.1);
color *= (1.0 - u_noise * 0.4 + u_noise * grain * 0.4);
}
gl_FragColor = vec4(color, 1.0);
}
`
export const DEFAULT_CONFIG: GradientConfig = {
color1: { r: 226, g: 98, b: 75 },
color2: { r: 255, g: 255, b: 255 },
color3: { r: 30, g: 34, b: 159 },
speed: 0.4,
scale: 1,
type: 'stripe',
noise: 0.08,
}
export const normalizeRgb = (rgb: RGB): [number, number, number] => [
rgb.r / 255,
rgb.g / 255,
rgb.b / 255,
]
export const gradientTypeNumber = {
linear: 0,
conic: 1,
animated: 2,
wave: 3,
silk: 4,
smoke: 5,
stripe: 6,
}
export default function GradFlow({
config: initialConfig,
className = '',
}: GradFlowProps) {
const config = useMemo(
() => ({ ...DEFAULT_CONFIG, ...initialConfig }),
[initialConfig]
)
const canvasRef = useRef<HTMLCanvasElement | null>(null)
const rendererRef = useRef<Renderer | null>(null)
const programRef = useRef<Program | null>(null)
const rafRef = useRef<number>(0)
const normalizedColors = useMemo(
() => ({
color1: normalizeRgb(config.color1 as RGB),
color2: normalizeRgb(config.color2 as RGB),
color3: normalizeRgb(config.color3 as RGB),
}),
[config.color1, config.color2, config.color3]
)
useEffect(() => {
const canvas = canvasRef.current
if (!canvas) return
const renderer = new Renderer({
canvas,
dpr: Math.min(window.devicePixelRatio, 2),
alpha: false,
antialias: false,
powerPreference: 'high-performance',
})
rendererRef.current = renderer
const gl = renderer.gl
const plane = new Plane(gl, { width: 2, height: 2 })
const handleResize = () => {
if (!canvas.parentElement) return
const parent = canvas.parentElement
const w = parent.clientWidth
const h = parent.clientHeight
const dpr = Math.min(window.devicePixelRatio, 2)
canvas.width = w * dpr
canvas.height = h * dpr
canvas.style.width = w + 'px'
canvas.style.height = h + 'px'
renderer.setSize(w, h)
if (programRef.current) {
programRef.current.uniforms.u_resolution.value = [w, h]
}
}
const program = new Program(gl, {
vertex: vertexShader,
fragment: fragmentShader,
uniforms: {
u_time: { value: 0 },
u_color1: { value: normalizedColors.color1 },
u_color2: { value: normalizedColors.color2 },
u_color3: { value: normalizedColors.color3 },
u_speed: { value: config.speed },
u_scale: { value: config.scale },
u_type: { value: gradientTypeNumber[config.type ?? 'animated'] },
u_noise: { value: config.noise },
u_resolution: { value: [canvas.clientWidth, canvas.clientHeight] },
},
})
programRef.current = program
const mesh = new Mesh(gl, { geometry: plane, program })
const scene = new Transform()
mesh.setParent(scene)
handleResize()
window.addEventListener('resize', handleResize, { passive: true })
const startTime = performance.now()
const animate = (currentTime: number) => {
const elapsed = (currentTime - startTime) / 1000
program.uniforms.u_time.value = elapsed
renderer.render({ scene: mesh })
rafRef.current = requestAnimationFrame(animate)
}
rafRef.current = requestAnimationFrame(animate)
return () => {
cancelAnimationFrame(rafRef.current)
window.removeEventListener('resize', handleResize)
const gl = rendererRef.current?.gl
if (programRef.current?.program && gl) {
gl.deleteProgram(programRef.current.program)
}
rendererRef.current = null
programRef.current = null
}
// eslint-disable-next-line react-hooks/exhaustive-deps
}, [])
useEffect(() => {
const program = programRef.current
if (!program) return
program.uniforms.u_color1.value = normalizedColors.color1
program.uniforms.u_color2.value = normalizedColors.color2
program.uniforms.u_color3.value = normalizedColors.color3
program.uniforms.u_speed.value = config.speed
program.uniforms.u_scale.value = config.scale
program.uniforms.u_type.value =
gradientTypeNumber[config.type ?? 'animated']
program.uniforms.u_noise.value = config.noise
}, [config, normalizedColors])
return (
<canvas
ref={canvasRef}
className={cn('w-full h-full block select-none touch-none', className)}
aria-label='gradflow animated gradient background'
/>
)
}
Utils
Create a utility function for merging Tailwind CSS classes.
// lib/utils.ts
import { clsx, type ClassValue } from "clsx"
import { twMerge } from "tailwind-merge"
export function cn(...inputs: ClassValue[]) {
return twMerge(clsx(inputs))
}Usage
Configure your gradient background with custom colors, animation speed, scale, and noise settings. The component offers full control over the visual appearance and behavior of your animated gradients.

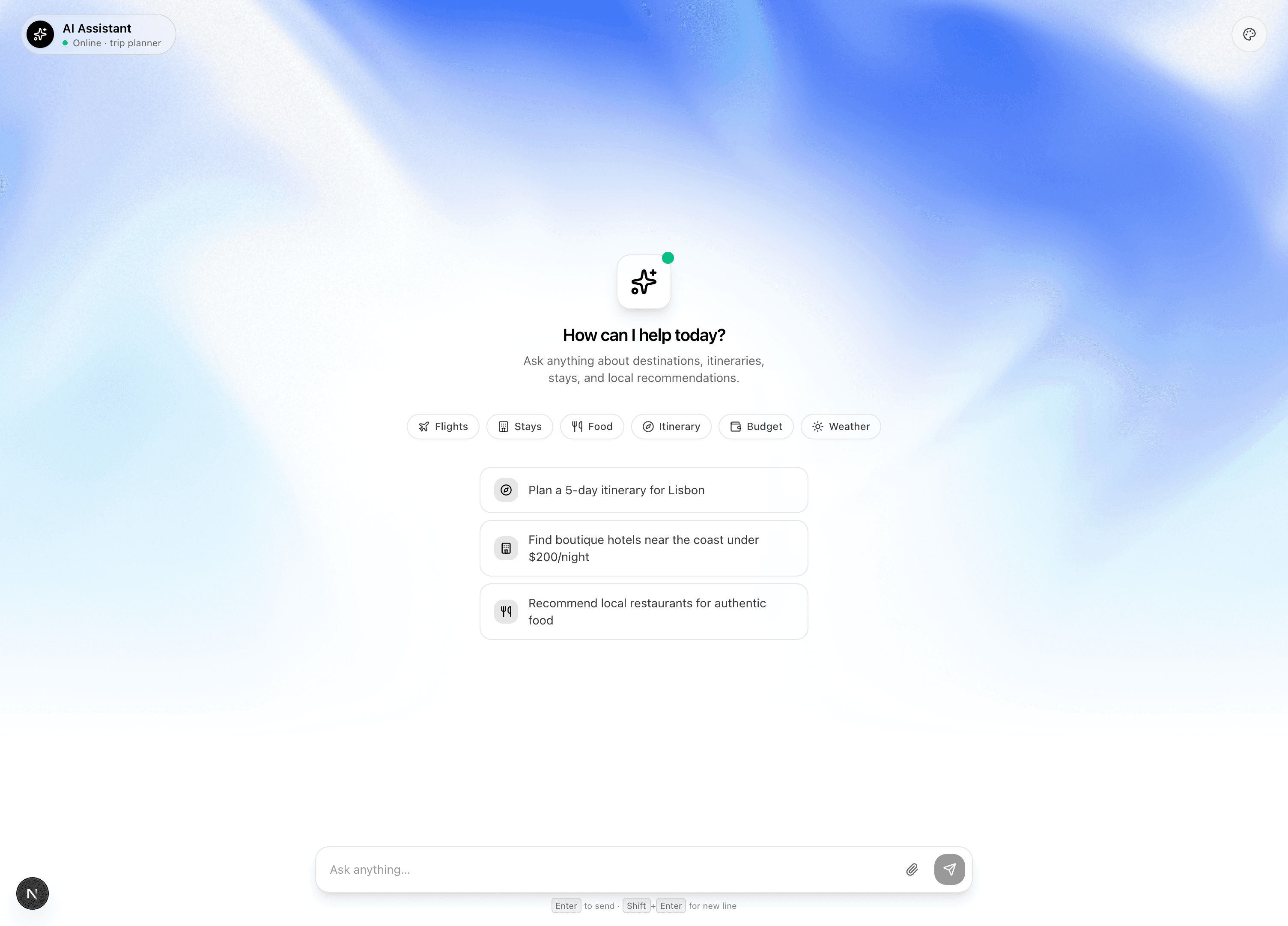

Example as a full screen background:
<div className='min-h-screen w-full relative overflow-hidden isolate'>
<GradFlow
className='-z-10 absolute'
config={{
color1: { r: 40, g: 25, b: 118 },
color2: { r: 241, g: 96, b: 59 },
color3: { r: 255, g: 255, b: 255 },
speed: 0.4,
scale: 1.2,
type: 'animated',
noise: 0.1,
}}
/>
{/* your component goes here */}
</div>
